Aluminum And Mild Carbon Punched Galvanised Walkway Grating Welded

  • 1
  • 2

Brand Name : X MESH

Model Number : X MESH-Anti Slip Tread PlatesA09

Certification : ISO9001:2015

Place of Origin : Hebei P.R. China.

MOQ : 200pcs

Price : USD8.5-25.5/pc

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 8500pcs/week

Delivery Time : 5-7days

Packaging Details : Wrapped with plastic film and pallet packing

Name : Welded Steel Grating

Diamond Pattern : 8 Diamonds

Width : 36"

Channel Depth : 3"

Thickness : 11 Ga., 10 Ga., 9Ga.

Standard : ASTM A213

Application : For Oil Industry

Feature : Stable & Rust Resistance

Material : Mild Steel

Packing : Pallet or Wooden Case packing

Contact Now

Aluminum And Mild Carbon Punched Galvanised Walkway Grating Welded Steel Grating



Welded Steel Grating Introduction:

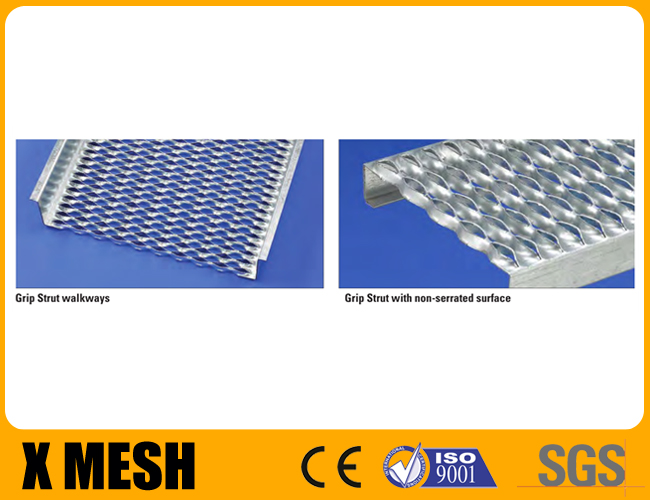

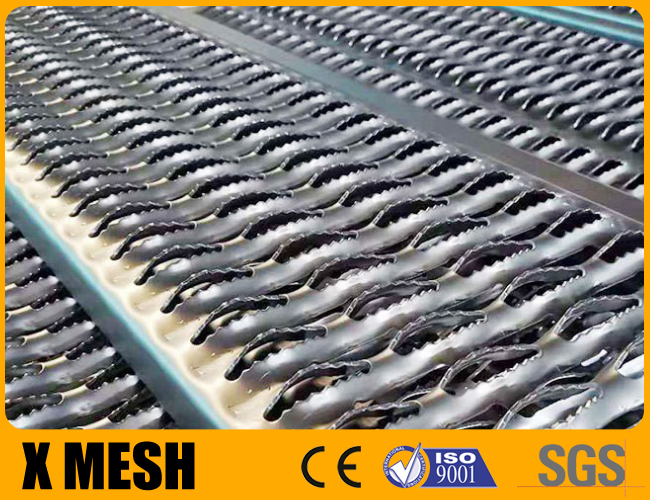

Anti-slip gratings are manufactured as one-piece consructed channels with walking surfaces surfaces consisting of serrated edges on top of diamond shaped openings. The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris. They can be cut or bending to any size and are ideal for wet or dry conditions where good slip resistance and traction are needed, adapt to different ground and anti-skid requirement.

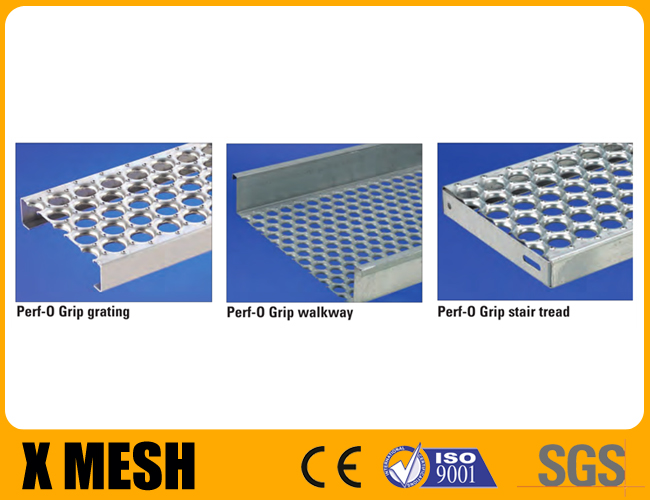

We can produce full line of safety grating includes standard plank, stair treads, ladder rungs, walkway channels and flat sheet flooring for industrial applications and so on. Material:Steel,Aluminum,Stainless Steel

Name

Welded Steel Grating

Diamond Pattern

8 Diamonds

Width

36"

Channel Depth

3"

Thickness

11 Ga., 10 Ga., 9Ga.

Standard

ASTM A213

Application

For Oil Industry

Feature

Stable & Rust Resistance

Material

Mild Steel

Packing

Pallet or Wooden Case packing



Welded Steel Grating Standard:

Implementation standards: GB: GB13296-97, GB/T14976-2002, GB/T14975-2002
American Standard: ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M
German standard: DIN 2462
Japanese standard: JIS G3463
Other standards: can be produced according to customer's standard



Welded Steel Grating Specification:

2 Diamond / 9-1/4" Width

Diamond Pattern

Width

Channel Depth

galvanized

Aluminum

2 Diamonds

9-1/4"

2"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

9-1/4"

2-1/2"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

9-1/4"

3"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

9-1/4"

4"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

3 Diamond / 13-3/4" Width

Diamond Pattern

Width

Channel Depth

galvanized

Aluminum

3 Diamonds

13-3/4"

2"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

13-3/4"

2-1/2"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

13-3/4"

3"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

13-3/4"

4"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

5 Diamond / 23-1/4" Width

Diamond Pattern

Width

Channel Depth

galvanized

Aluminum

5 Diamonds

23-1/4"

2"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

23-1/4"

2-1/2"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

23-1/4"

3"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

23-1/4"

4"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

6 Diamond / 27-3/4" Width

Diamond Pattern

Width

Channel Depth

galvanized

Aluminum

6 Diamonds

27-3/4"

2"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

27-3/4"

2-1/2"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

27-3/4"

3"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

27-3/4"

4"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

8 Diamond / 36" Width

Diamond Pattern

Width

Channel Depth

galvanized

Aluminum

8 Diamonds

36"

1-1/2"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

36"

2"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

36"

2-1/2"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")

36"

3"

11 Ga., 10 Ga., 9Ga.

12 Ga. (.080"), 10 Ga. (.100")



Welded Steel Grating Applications:

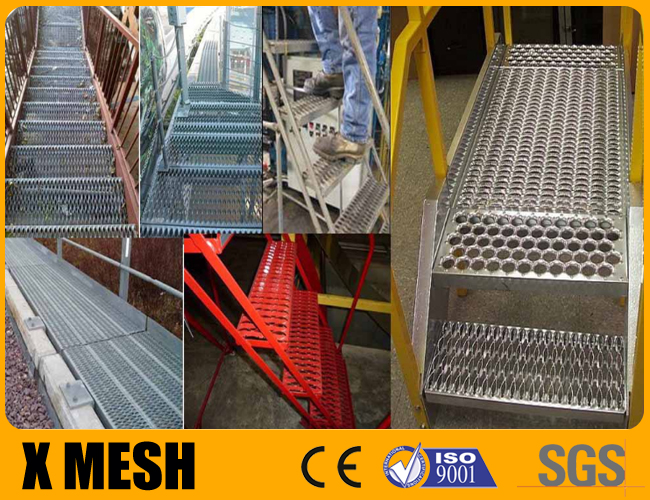

It's applies to secure channel, platform, stair treads in sewage treatment, waterworks,power plant,prospecting instrument

and other particular environment.





Welded Steel Grating Feature: ​





Economical to install In addition to low material cost and nominal erection cost, Grip Strut safety grating also helps save with its long-lasting, rust-resisting materials and finishes.

• Standard mill-galvanized finish resists corrosion to help provide lasting surfaces.

• High-strength aluminum and Types 304 and 316L stainless steel help provide maximum corrosion resistance.

• Black unpainted steel available for installations requiring hot dipped galvanized finish after fabrication.

• These light weight yet brawny panels permit substantial reduction in structural steel requirements.
